Shoring Pole Heavy Duty

A Shoring Pole Heavy Duty, also known as a cargo bar or load bar, is a heavy-duty device used for securing  cargo in trucks, trailers, or other cargo-carrying vehicles. It is designed to prevent shifting and movement of cargo during transportation.

Heavy-duty shoring poles are typically made of high-strength steel or aluminium, which provides durability and strength to withstand heavy loads and provide reliable cargo securing. The poles are designed to be adjustable in length, allowing them to fit different cargo areas and accommodate varying cargo sizes.

Shoring poles have adjustable telescopic design that allows you to extend or retract them to the desired length. This adjustability allows for a custom fit in the cargo area, ensuring a snug and secure hold on the cargo. The poles usually have locking mechanisms, such as a spring-loaded pin or twist lock, to hold them in place at the desired length.

The primary function of a shoring pole is to stabilise the load and prevent it from shifting during transportation. When properly positioned and tensioned, the shoring pole exerts pressure against the cargo and the walls or floor of the vehicle, creating a secure barrier that helps maintain the balance and integrity of the load.

Please check the internal width of your vehicle before you purchase shoring poles.

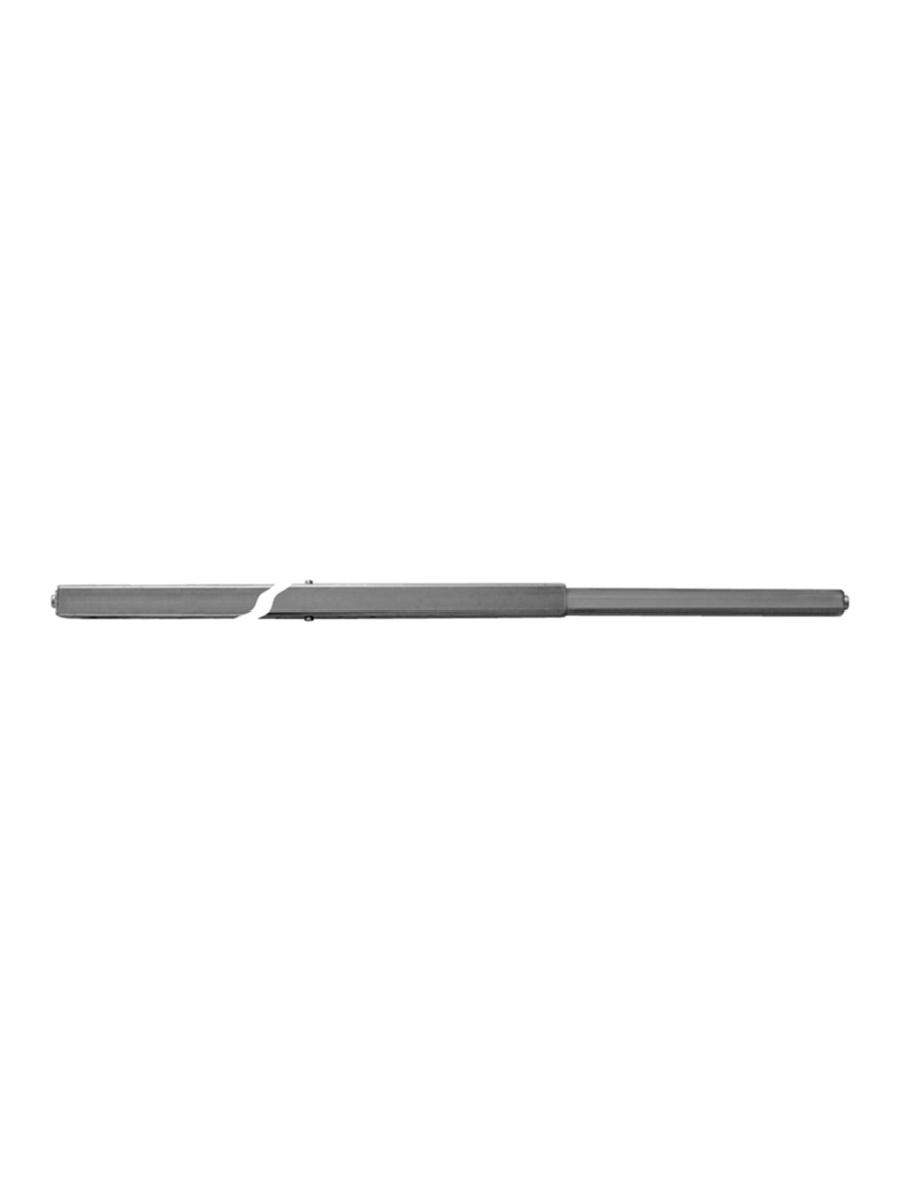

Square Telescopic Shoring Poles –

Size: W50mm x D50mm x 3mm wall thickness

Adjustable length: 202mm – 2590mm

Suitable for use with 025mm round hole track

Robust, heavy duty design

Bright zinc plated finish

Maximum load capacity: 1670kgs (evenly distributed)

Weight without handles: 10.50kg

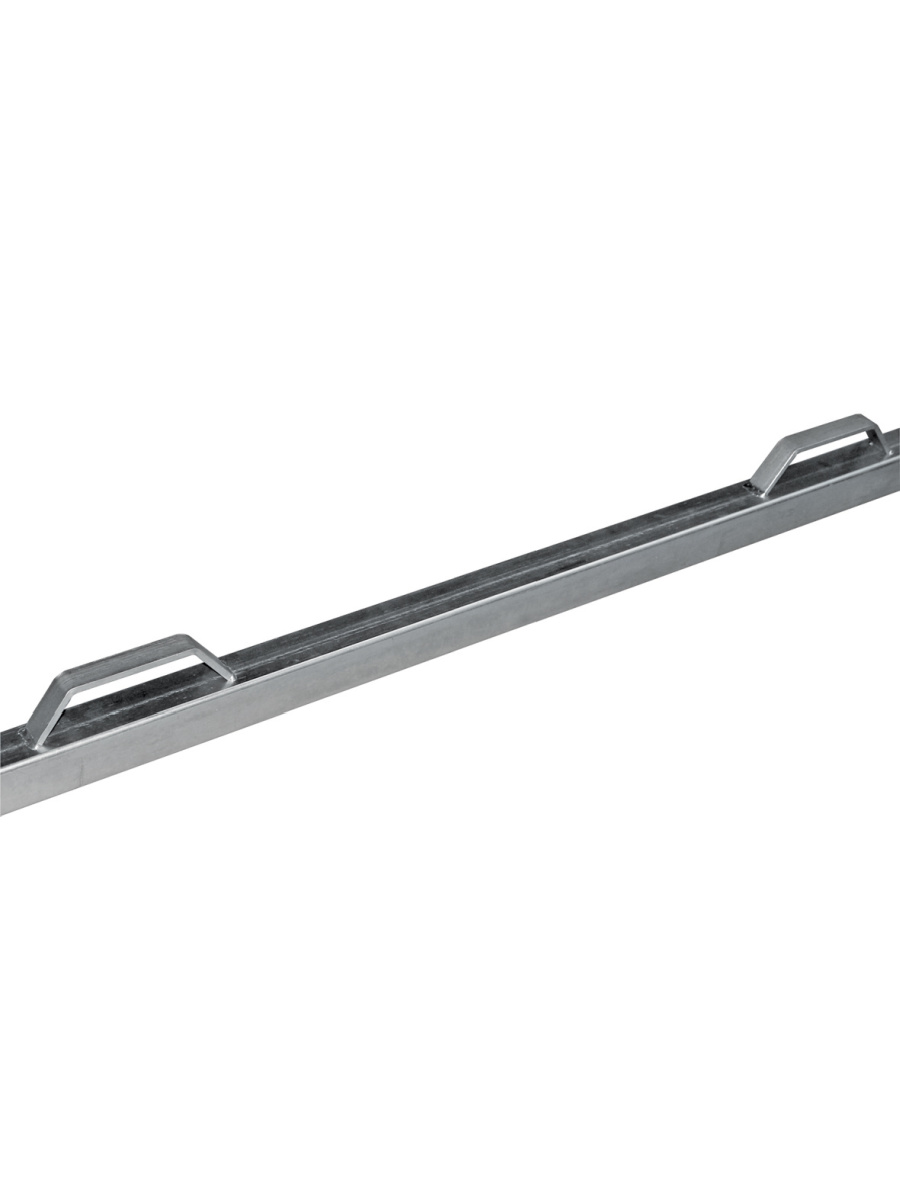

Weight with handles: 11.19kg

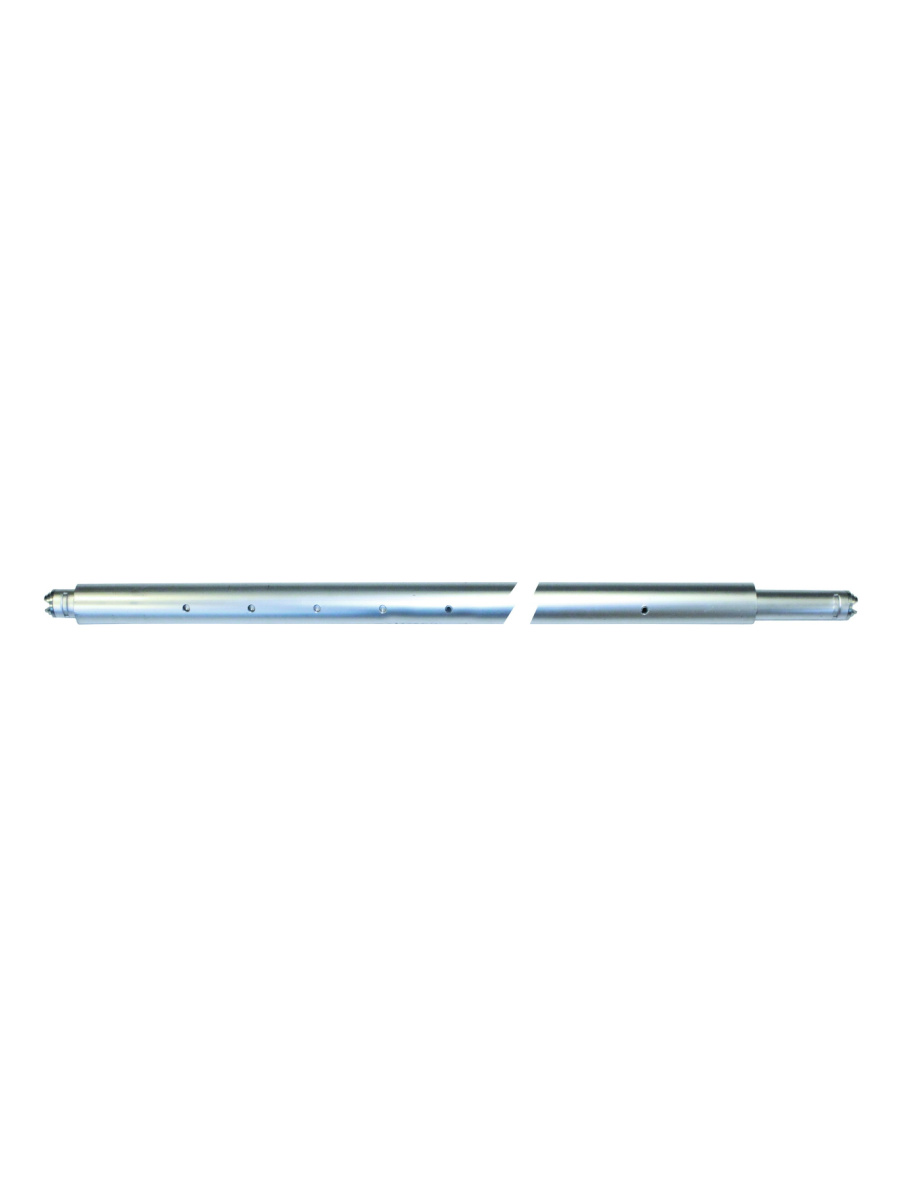

Round Telescopic Shoring Poles –

Tube diameter options: 042mm & 044mm

Adjustable lengths: 1300mm – 1700mm/1700mm-2100mm/2050mm-2550mm/2320mm-2660mm

Suitable for use with 025mm round hole track

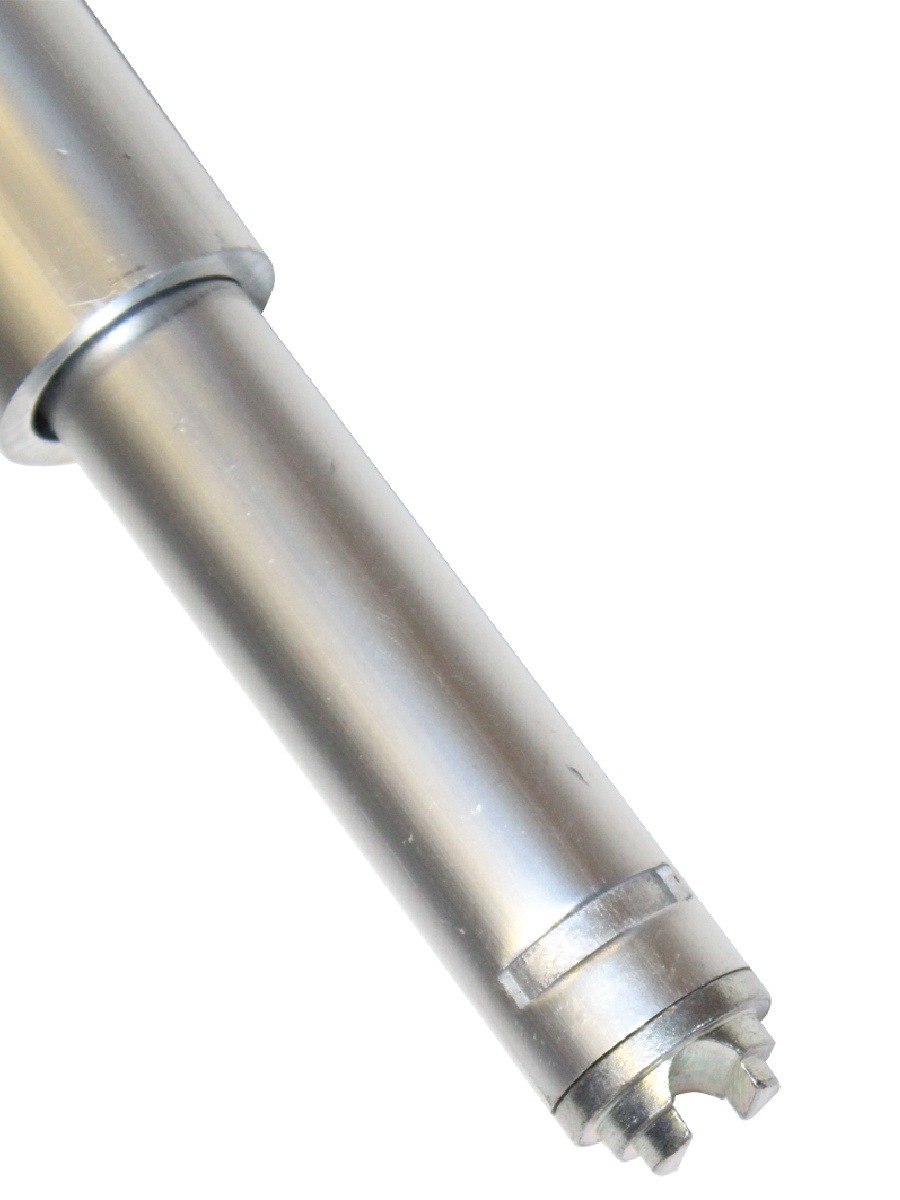

Sprung loaded end

Maximum load capacity: 400kgs (evening distributed)
